About The KB3 Water Treatment System

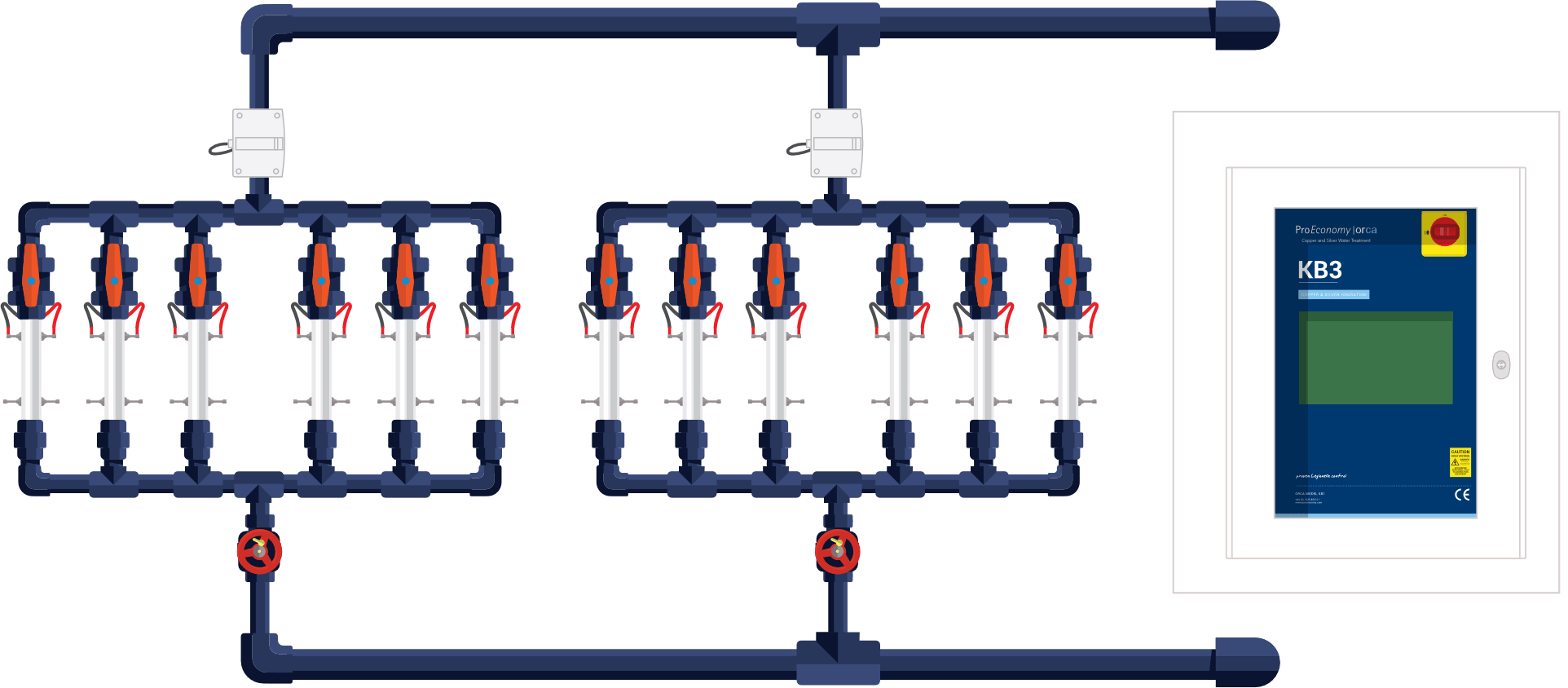

The KB3 copper silver ionisation system comes with 2 x 6 pod manifolds and can treat from 250 litres per minute to 400 litres per minute. The KB3 comes with touchscreen technology and data downloading functionality, is programmed with our descaling software and is compatible with both Modbus BMS and our new self-adjusting pods. The water treatment system is also compatible with our water management system, Tetras.
Download our Orca brochure
Simply fill in the form below to download our brochure.The KB3
Copper Silver Ionisation
- Flow Rate
- Number of Silver Pods
- Number of Copper Pods
- Pipe Size
- Water Pressure
- Width
- Height
Flow Rate
250 - 400lpm
Number of Silver Pods
2
Number of Copper Pods
10
Pipe Size
1.5 inch
Water Pressure
9 bar
Width
2750mm
Height
1388mm
Depth
300mm
Touchscreen
Yes
Anti-scaling
Yes
See Developments Below
Self-adjusting
Yes
See Developments Below
Data Downloading
Yes
See Developments Below
BMS Compatible
Yes
Modular
Yes
Remote Access
Yes
See Developments Below
- Depth
- Touchscreen
- Anti-scaling
- Self-adjusting
- Data Downloading
- BMS Compatible
- Modular
- Remote Access
- Flow Rate: 250 - 400lpm
- Number of Silver Pods: 2
- Number of Copper Pods: 10
- Pipe Size: 1.5 inch
- Water Pressure: 9 bar
- Width: 2750mm
- Height: 1388mm
- Depth: 300mm
- Touchscreen: Yes
- Anti-scaling: Yes
- Self-adjusting: Yes
- Data Downloading: Yes
- BMS Compatible: Yes
- Modular: Yes
- Remote Access: Yes
Warranty
ProEconomy is proud of its quality assurance process as well as the high standard of its water treatment product.
If an Orca copper silver ionisation system is purchased with our standard maintenance package then we will guarantee it for a period of 5 years from the date of installation. During this period ProEconomy will replace any parts that fail (excluding consumables) and will assure the continued operation of the system (see terms and conditions).
Tetras Water Management System
Tetras is a new cloud-based water management system. It enables you to use your desktop, tablet or smartphone to view where and when water samples were taken, together with the corresponding laboratory results as soon as they become available. Furthermore, you can then analyse the data and display it in a variety of ways, making potential issues easier to identify.
All Orca water treatment systems are compatible with our Tetras water management system.
Development of our Water Treatment System
ProEconomy has a policy of continuous development of the Orca copper silver ionisation system to make it the very best and keep it at the top of the water treatment industry. Over the years innovations have included:-
- Anti-scaling. Proprietary software that reduces scale build up on the electrode surface.
- Low-flow software. Low water flow rates can increase the rate of scaling to very high levels. Software developed by and unique to ProEconomy counteracts this very effectively.
- Self-adjusting. Automatically adjusts the current between the copper and silver electrodes to compensate for changes in electrode wear.
- Touch-screen Technology. Making the system very user-friendly.
- Monitoring and diagnostic information. Available for one year. This allows comparison with norms so that problems such as leaks, etc. become immediately apparent.
- Connection to building management systems. Is available, allowing continuous monitoring.
- Self-diagnostic fault detection. If a problem is detected the system will either try and clear it or, if it can't, will shut down and transmit an error message.
- Multiple ionisation legs. On bigger systems - if one pod fails the others are programmed to take up the load.
- Overload detection and safe mode operation. If the system runs at over 90% of its full capacity for more than an hour it reduces down to 10% for the next hour, preventing overheating.
- Data-downloading. System data (flow rates, errors, utilisation) can be downloaded to our Tetras system for review by the client remotely.
- Remote Access. Remotely monitor and modify the Orca system via our Tetras Client portal. Please get in touch for details.
- Pod Cartridges The electrodes within the pods can be easily removed for cleaning and changing. ProEconomy are the only company that offers this functionality.
